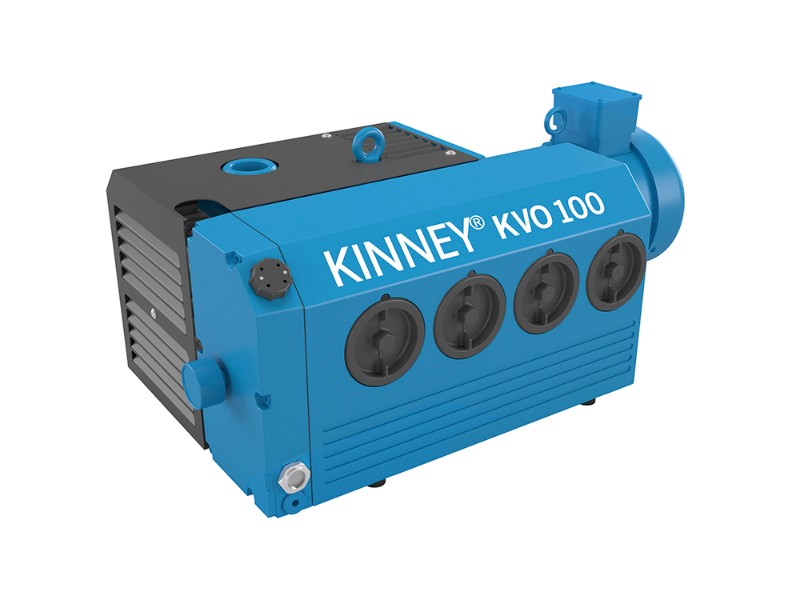

Kinney® KVO series rotary vane pumps are durable vacuum pumps with a heavy-duty construction, designed for 24-hour, 7-day a week, 365-day a year operation. These pumps are rugged and easy to service with our user-friendly layout which speeds up oil and filter changes. The KVO vane pumps have a highly efficient design for not only energy efficiency, but also efficiency for CFM per HP. Advanced cylinder and cover designs allow sound levels to be as low as 67 dB(A) for quiet operation. Models KVO-700 through KVO-1300 come with inlet filters built in and do not need to be purchased separately.
The KVO vane series serves a variety of applications where high-volume air is required in applications up to 0.375 Torr (with gas ballast) for continuous operation.
Typical Applications
- Vacuum Packaging
- Freeze Drying
- Filling & Sealing
- Food Packaging
- Injection Molding
- Plastic Thermoforming
- Central Vacuum Systems
| Model | CFM | HP | RPM | Ultimate Pressure (Torr) |
Ultimate Pressure (mbar) |
| KVO-50 | 35.3 | 2 | 1740 | 0.075 | 0.375 |
| KVO-75 | 49.4 | 3 | 1740 | 0.075 | 0.375 |
| KVO-100 | 70.6 | 5 | 1740 | 0.075 | 0.375 |
| KVO-150 | 106 | 5 | 1740 | 0.075 | 0.375 |
| KVO-200 | 141 | 7.5 | 1770 | 0.075 | 0.375 |
| KVO-300 | 212 | 10 | 1770 | 0.075 | 0.375 |
| KVO-400 | 283 | 15 | 1140 | 0.075 | 0.375 |
| KVO-500 | 388 | 20 | 1140 | 0.075 | 0.375 |
| KVO-700 | 494 | 25 | 1140 | 0.075 | 0.375 |
| KVO-900 | 586 | 30 | 1140 | 0.075 | 0.375 |
| KVO-1100 | 777 | 40 | 1140 | 0.075 | 0.75 |
| KVO-1300 | 903 | 40 | 1140 | 0.075 | 0.75 |
