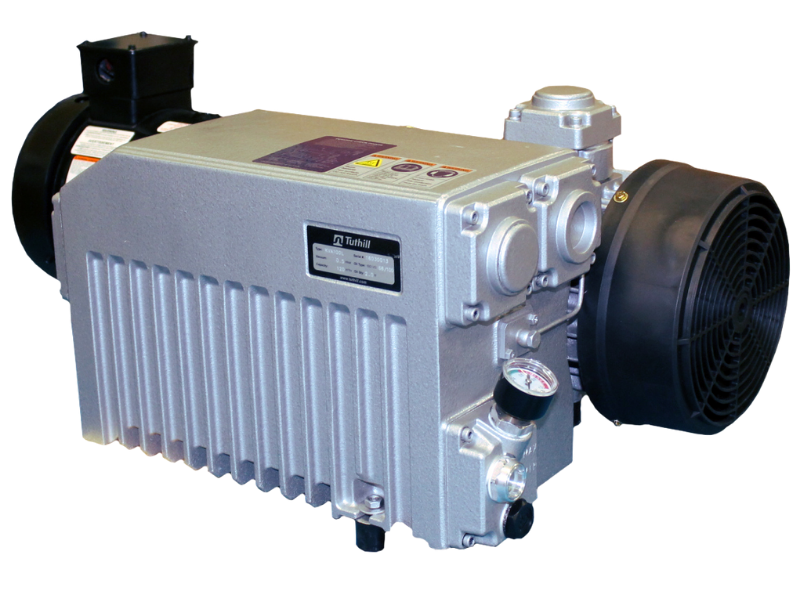

Kinney® KVA rotary vane pumps are single-stage, oil-flooded, air-cooled, multi-vane vacuum pumps and direct driven. Ideally suited for clean or moderately contaminated applications when suction filters are fitted to the pump.
Most models can achieve ultimate pressure levels near 0.075 Torr (75 microns, 0.1 mbar A).
Typical Applications
- Vacuum Packaging
- Meat Packaging
- Vacuum Chucking & Holding
- Plastic Thermoforming
- Food Processing
- Transformer Drying
- Central Vacuum Systems
| Model | CFM | HP | RPM | Ultimate Pressure (Torr) |
Ultimate Pressure (mbar) |
| KVA-12 | 7 | 0.75 | 1740 | 1.5 | 2.0 |
| KVA-21 | 14 | 1 | 3480 | 1.5 | 2.0 |
| KVA-25 | 21 | 2 | 1740 | 0.12 | 0.16 |
| KVA-40 | 28 | 2 | 1740 | 0.12 | 0.16 |
| KVA-63 | 45 | 3 | 1740 | 0.11 | 0.14 |
| KVA-100 | 71 | 5 | 1740 | 0.11 | 0.14 |
| KVA-160 | 124 | 7.5 | 1740 | 0.11 | 0.15 |
| KVA-250 | 177 | 10 | 1740 | 0.075 | 0.1 |
| KVA-400 | 300 | 15 | 1160 | 0.07 | 0.09 |
| KVA-630 | 460 | 25 | 1160 | 0.08 | 0.11 |
