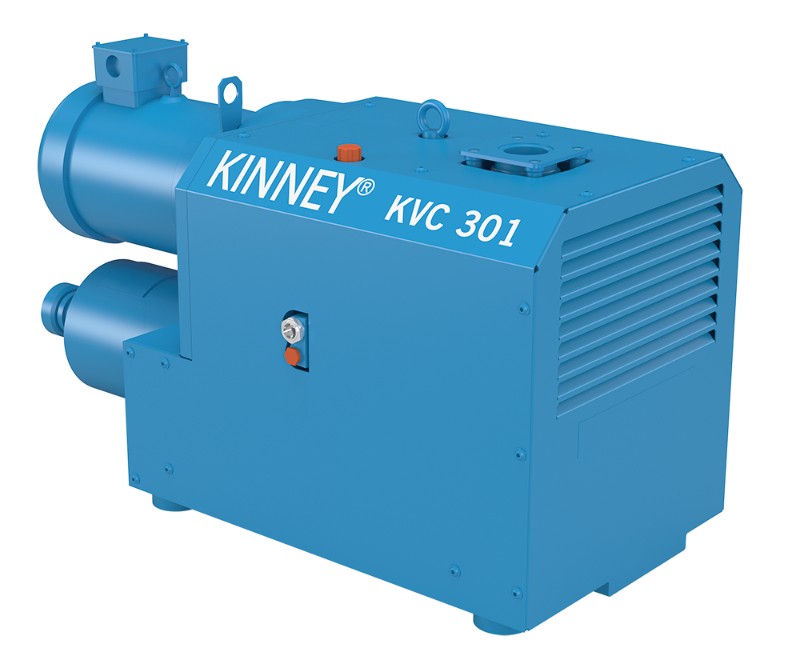

Kinney® KVC dry claw vacuum pumps are a contact free dry claw vacuum pump that operates efficiently and
economically. Contactless operation means minimal wearing parts and maintenance needed with oil-free compression.
The KVC dry claw pumps offer a compact footprint requiring a minimal amount of floor space and are very easy to
install. The Kinney® KVC dry claw pumps have a highly efficient design for not only energy efficiency but also efficiency
for CFM per HP.

The KVC claw series serves a variety of applications where high-volume air is required in applications down to 75 Torr
(27 “Hg).



Typical Applications

  • Pick & Place
  • CNC Router Tables
  • Industrial Vacuum
  • Central Vacuum Systems
  • Thermoforming
  • Food Packaging
  • Degasification



Model CFM HP RPM Ultimate Pressure
(Torr)
Ultimate Pressure
(mbar)
KVC-60 72 2 3450 75 100
KVC-100 120 3 3450 113 150
KVC-150 180 5 3450 75 100
KVC-251 255 7.5 3450 150 200
KVC-301 350 7.5 3550 113 150
KVC-401 485 12 3550 150 200
KVC-501 603 15 3550 150 200
KVC-1000 1140 30 3550 150 200
